CNC Plasma Cutting, Flame Cutting & Lumsden Grinding Services

Welcome to Patrick Steel Ltd, specialists in the provision of flame cutting, CNC profile cutting and Lumsden grinding services throughout Coventry, surrounding areas of the Midlands and the rest of the UK. With a wealth of knowledge in the steelwork industry, we are able to accommodate small, singular orders as well as large batch quantities through a fast and efficient CNC flame cutting and grinding service. Our team of experienced and well-trained metalworkers ensures a quick turnaround time, guaranteeing rapid deliveries at competitive prices to all customers.


Plasma Cutting CNC High Definition Profile Cutting Machine

Plasma Cutting - CNC High Definition Profile Cutting Machine

Capacity:

  • We have one High Definition Plasma cutting machine.
  • The machine is capable of cutting Mild Steel, Stainless Steel and Aluminium
  • Thickness range of 1mm up to 25mm.
  • It is operated using the latest Lantek Software.
  • It is capable of accuracy of up to ± 0.5mm.

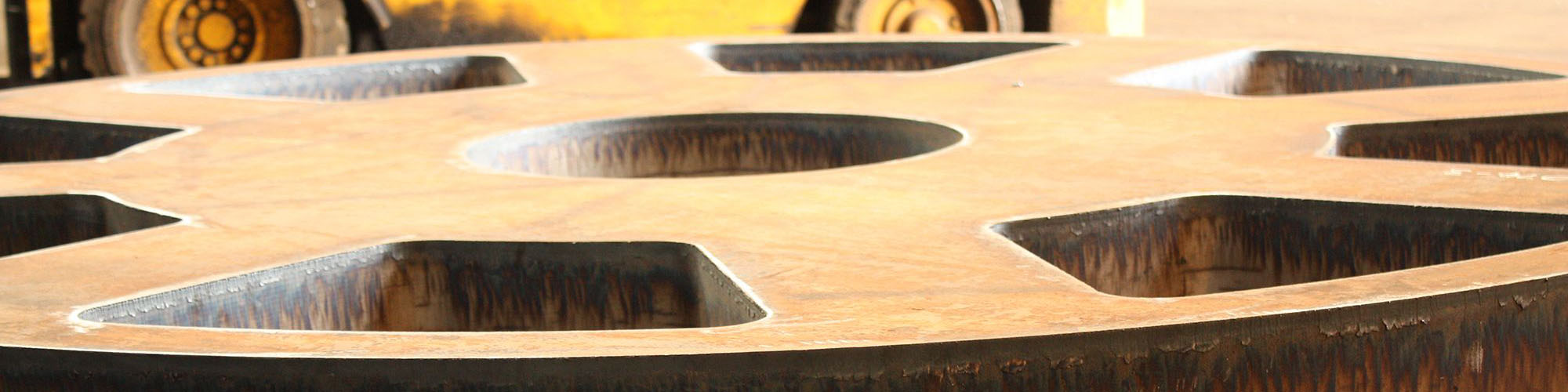

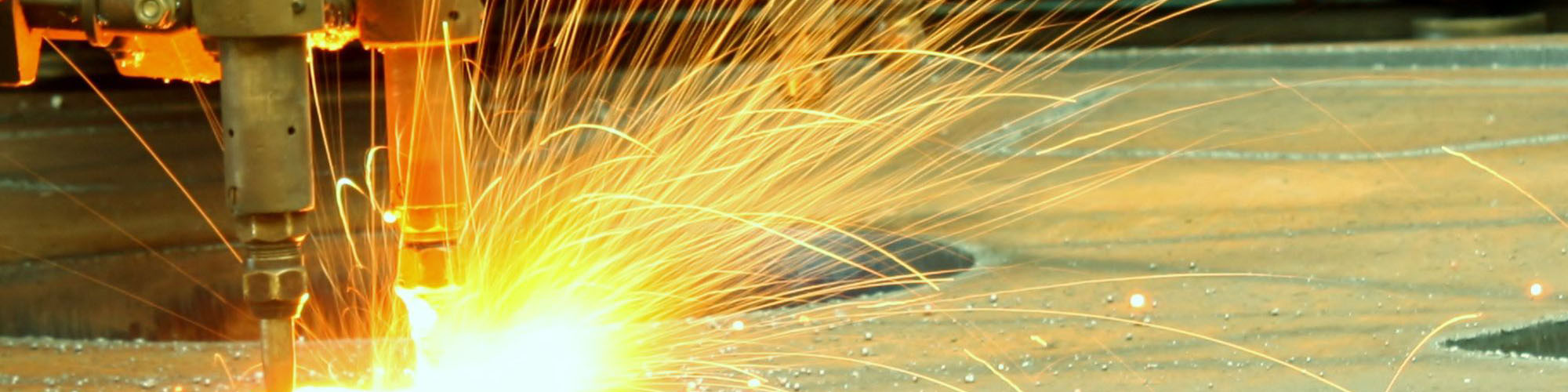

Flame Cutting CNC Profile Cutting Machine

Flame Cutting - CNC Profile Cutting Machine

Capacity:

  • We have 4 CNC Oxy-propane flame profiling machines.
  • Each is digitally connected to our CAD/CAM systems. They have 5 heads per machine and are capable of cutting profiles up to 6,000mm x 3,00mm. Various thicknesses of steel plate are available from 5mm to 300mm in grades S275/43A, S355/50B and EN8.
  • We can work from simple sketches, engineering drawings or electronic DXF files. We can also reverse engineer existing jobs using our magic eye scanner.

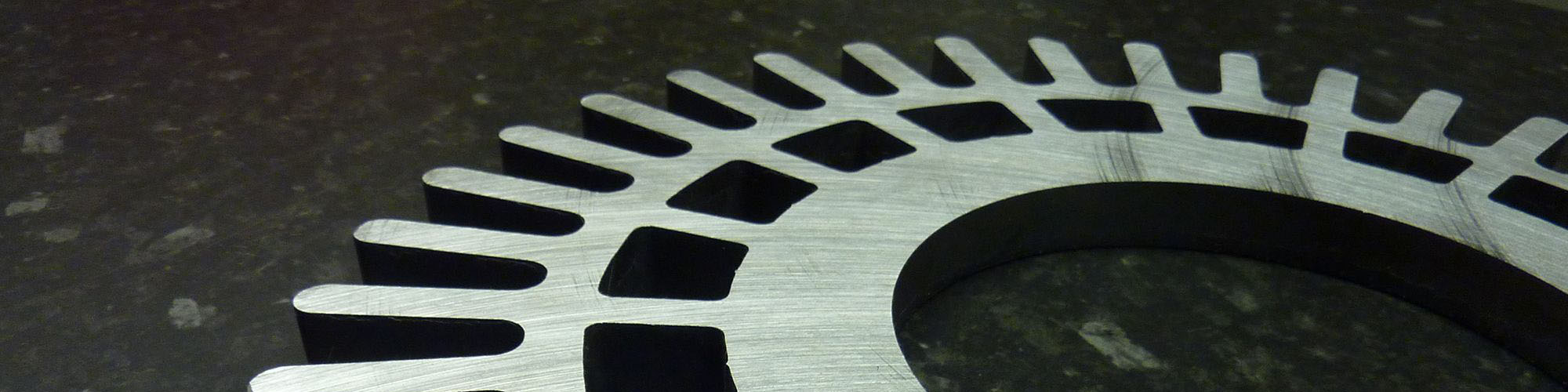

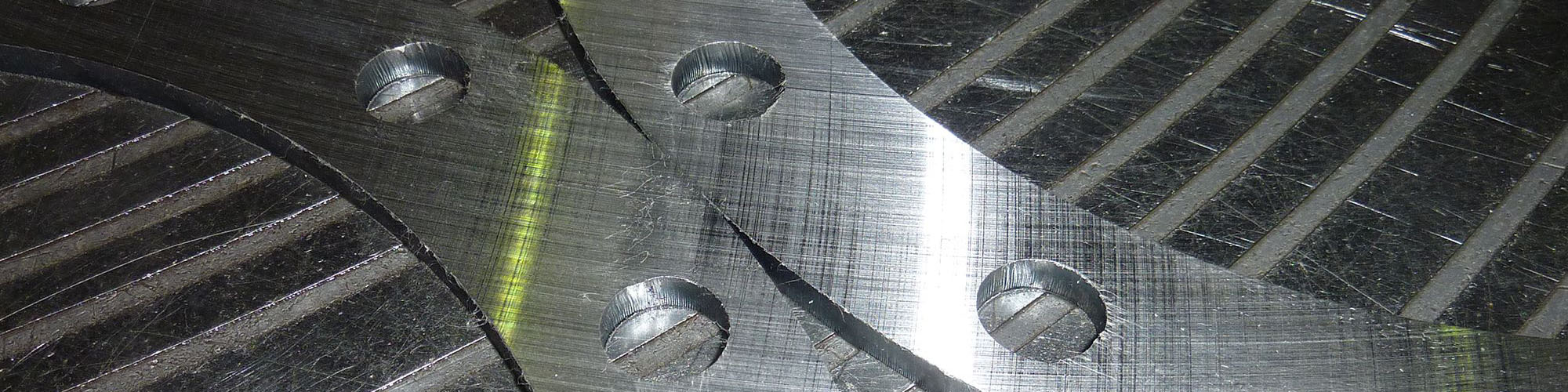

Lumsden Grinding Grinding Machine

Lumsden Grinding - Grinding Machine

Capacity:

  • We have 5 Lumsden Grinding (Rotary) machines.
  • Two 60" (1524mm) - Two 48" (1220mm) - One 36" (915mm) diameter tables.

Accuracy:

  • Unspecified 0.25mm (10 thou) - Specified 0.1mm (4 thou). Flat / parallel to within 2 thou per linear foot.

We Can Grind Free Issue Material, As Well As Flame Cut Profiles

Steelwork Materials Used:

  • We stock a wide variety of mild steels in different grades and thicknesses.
  • Plate Thickness: 5mm to 300mm
  • BS EN100 025 S275 (formerly known as BS4360 grade 43A)
  • BS EN100 025 S355JR (formerly known as BS4360 grade 50B)
  • BS 970 080M40 grade EN8

More specialist steel specifications can be ordered to suit your requirements. All materials can be supplied with full certification on request.

ISO 9001 Accredited

iso

ISO 9001 is the internationally recognised standard for Quality Management Systems (QMS). It is the most widely used QMS standard in the world, with over 1.1 million certificates issued to organisations in 178 countries.

ISO 9001 provides a framework and set of principles that ensure a common-sense approach to the management of your organisation to consistently satisfy customers and other stakeholders. In simple terms, it provides the basis for effective processes and effective people to deliver an effective product or service time after time.

For more information about our CNC flame cutting, CNC profile cutting or Lumsden grinding services, contact Patrick Steel Ltd today on: 02476 645 422 /

Click here read our latest news...

Latest News

Plasma cutting the Hobbits Door

Plasma cutting the Hobbits Door

We wanted to share with you one of the most enjoyable projects we have worked on. Patrick Steel were approached by a local designer and was asked if we would help create a replica Hobbit door from the Lord of the Rings movies. As expected, we happily agreed to this fantastic project. The metal work on the door was plasma cut from 8mm mild steel, with the hinges fabricated by our neighbours, Metal X Fabrications. It took a lot longer to draught the intricate design on our Lantek software than to physically plasma cut but the finished product was worth all the efforts. In fact, the cutting time was only 5 minutes as the plasma cutter works at a speed of 3175mm per minute when cutting 8mm.  Super-fast!!!! Here is a picture of Bilbo's finished house. We were privileged to be asked to be involved and it was a fantastic project to work on.If you would like any more information on our plasma cutting services, contact us today!

Click Here
The Process of CNC Profile Cutting

The Process of CNC Profile Cutting

High Quality Cutting Solutions Plasma cutting guarantees quality, consistency and because of this means it is a cost-effective solution to the cutting process. CNC Plasma cutting was initially developed to cut materials that were unsuitable for flame cutting for instance steel or aluminium, however the process is now used more widely and is suitable for a variety of carbon steel and thin low alloyed steels. What does the process include? Find out more about the process… CNC profile cutting is a cost-effective method of cutting two dimensional profiles from steel sheet and plate using a CNC controlled cutting machine. A CNC profile cutter is a metal plate cutting machine that uses plasma cutting technology to cut through metal. The plasma cutting process uses electrically conductive gas to transfer energy from an electrical power source through a plasma cutter torch to the material being cut. The plasma arc consists of a power supply, arc starting circuit and a torch. With a c...

Click Here
Advantages of CNC Plasma Cutting

Advantages of CNC Plasma Cutting

CNC plasma cutting (computer numerical control plasma cutting) is a process that has been around for the last 30 years. CNC plasma cutting systems use computers to design shapes and to control the cutting process, resulting in shapes that are very smooth and precise and that may include sharp corners, intricate curves and inside cuts. Benefits of Using the CNC Plasma Cutting: Precision and Accuracy- The plasma cutting machines are equipped with gears that ensure cutting is accurate without deviating from the measurements specified. CNC plasma cutters are computer operated and paired with the latest technologies. That means that cuts are sharp and clean, ensuring greater precision and accuracy throughout the entire cutting process. Variety of Materials- CNC plasma cutting can be used for a wide range of metals of varying thicknesses. The cutter can be used for cutting both ferrous and non-ferrous metals and can cut through them effectively and effortlessly. Efficiency- The CNC pl...

Click Here
Advantages Of Flame Cutting

Advantages Of Flame Cutting

Flame cutting is one of the most widely used cutting techniques for metal fabrication as the equipment has a relatively low cost and can be used to cut, weld, and heat steel. Flame cutting is versatile and can be used to weld almost any type of metal. The flame used in flame cutting burns at 6000 degrees Fahrenheit and is the only gas flame that is hot enough to melt the vast majority of all commercial metals. This type of machine has the ability to cut a broad range of metal thicknesses, from 1 millimetre to 1000 millimetres. Flame cutting employs multiple-torch capability, meaning the process is ideal for high production runs. Flame cutting offers slow piercing and varied cutting speeds. Thin materials are cut at 30 Inches per Minute (IPM), with thick materials of 1.5 inches and above cut at around about 15 IPM. This makes flame cutting an ideal system to cut a variety of metals. Flame cutting can also prove the best choice for cutting when the metal is to be subjected to addition...

Click Here
Liver Bird - Liverpool Shopping Park

Liver Bird - Liverpool Shopping Park

An absolute joy to be a part of!The worlds largest Liver Bird (11meters high) installed at Liverpool Shopping Park. Fabricated by Nuneaton based Andrew Langley. The Liver Bird sculpture takes pride of place at the centre of Liverpool Shopping Park, the new £100m retail and leisure scheme which has regenerated the former Edge Lane Retail Park and surrounding land.Weighing seven tonnes, the Liver Bird, was carefully lifted from a low-loader by a specialist team and crane onto a purpose-built plinth.Made of fabricated Meccano pieces to commemorate Liverpool-born toy-maker Frank Hornby and the first Meccano factory on Binns Road, the sculpture stands at 11 metres tall and has taken more than a year to design and manufacture.Flame cuts and Plasma cuts supplied by Patrick Steel Ltd.
