Flame Cutting vs. Plasma Cutting: Which Method Is Right For Your Project?

Swipe

Choosing the right cutting method is crucial when it comes to steel fabrication. At Patrick Steel Ltd, we specialise in both CNC flame cutting and high-definition plasma cutting, serving Coventry and the wider Midlands area. In this article, we’ll explore the key differences between these two techniques to help you decide which method best suits your specific project requirements.

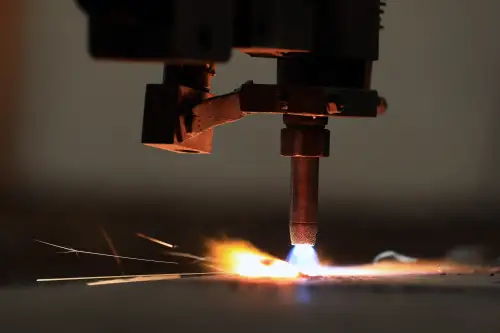

Flame Cutting

Flame cutting, also known as oxy-fuel cutting, is a tried-and-tested method used to cut thick steel plates. Using a CNC profile cutting machine, this process involves a combination of oxygen and propane gases that create a high-temperature flame capable of cutting through heavy-duty steel.

This technique is ideal for large-scale projects that require working with thicker materials, such as structural components or heavy machinery parts. Flame cutting is not only versatile but also cost-effective, making it suitable for cutting steel plates of various thicknesses—ranging from 5mm to 300mm in different grades like S275 and S355. It’s the go-to option when a strong, reliable cut is needed, even on large profiles.

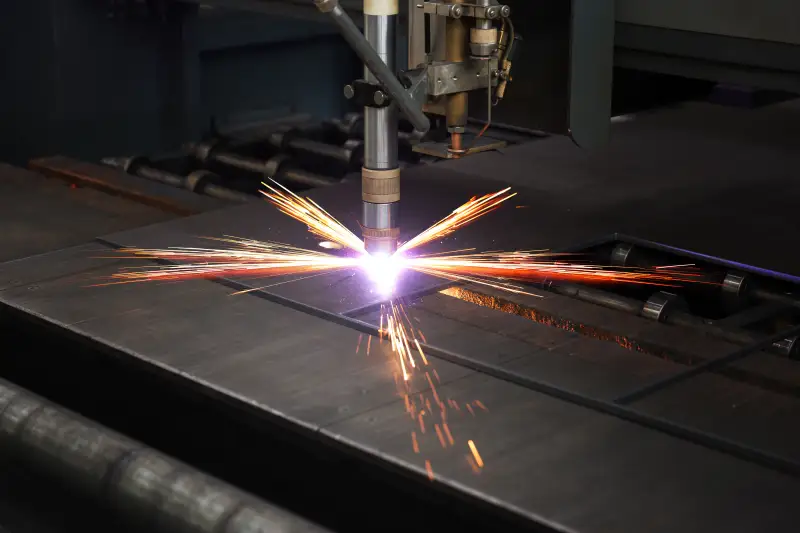

Plasma Cutting

Plasma cutting on the other hand, is a high-precision method that uses a plasma torch to cut through metal. The torch creates an arc between the electrode and the metal, producing a jet of hot plasma capable of slicing through mild steel, stainless steel, and aluminium up to 30mm thick.

Our CNC High-Definition Plasma machine at Patrick Steel Ltd is designed to achieve exceptional accuracy, with a precision of up to ± 0.5mm depending on the material thickness. This process is ideal for creating intricate designs, complex shapes, and detailed cuts. It’s particularly effective for thinner materials and when a clean, high-quality finish is required, resulting in less post-processing work.

Key Differences

When choosing between flame cutting and plasma cutting, there are several factors to consider:

• Material Thickness: Flame cutting is better for thicker materials, while plasma cutting is suitable for thinner sheets.
• Cutting Speed: Plasma cutting typically works faster than flame cutting, especially on thinner materials.
• Precision: Plasma cutting offers higher precision and cleaner edges, making it ideal for intricate profiles.
• Cost Efficiency: Flame cutting is generally more cost-effective for larger, heavier materials, while plasma cutting can be more economical for detailed work.

The decision often comes down to the project’s specific requirements, including material type, desired finish, and budget constraints.

Choosing The Correct Method

When deciding which method to use, consider the nature of your project:

• Use Flame Cutting When: Working with thick steel plates or when the project demands a high level of durability. It’s perfect for heavy structural components.
• Opt for Plasma Cutting If: You need precise cuts, are working with thinner materials, or have complex shapes that require high definition. This is the ideal choice for decorative metalwork or detailed engineering components.

If you’re unsure which method to choose, the experts at Patrick Steel Ltd are here to help. With decades of experience in steel fabrication, we can guide you through the process and recommend the best solution for your needs.

Conclusion

Understanding the strengths and limitations of both flame cutting and plasma cutting will help you make informed decisions about your steel projects. For professional advice or to discuss your requirements in more detail, contact Patrick Steel Ltd—your trusted CNC cutting specialists in Coventry.
